CARRAT
Air processing analysis for centrifugal fans

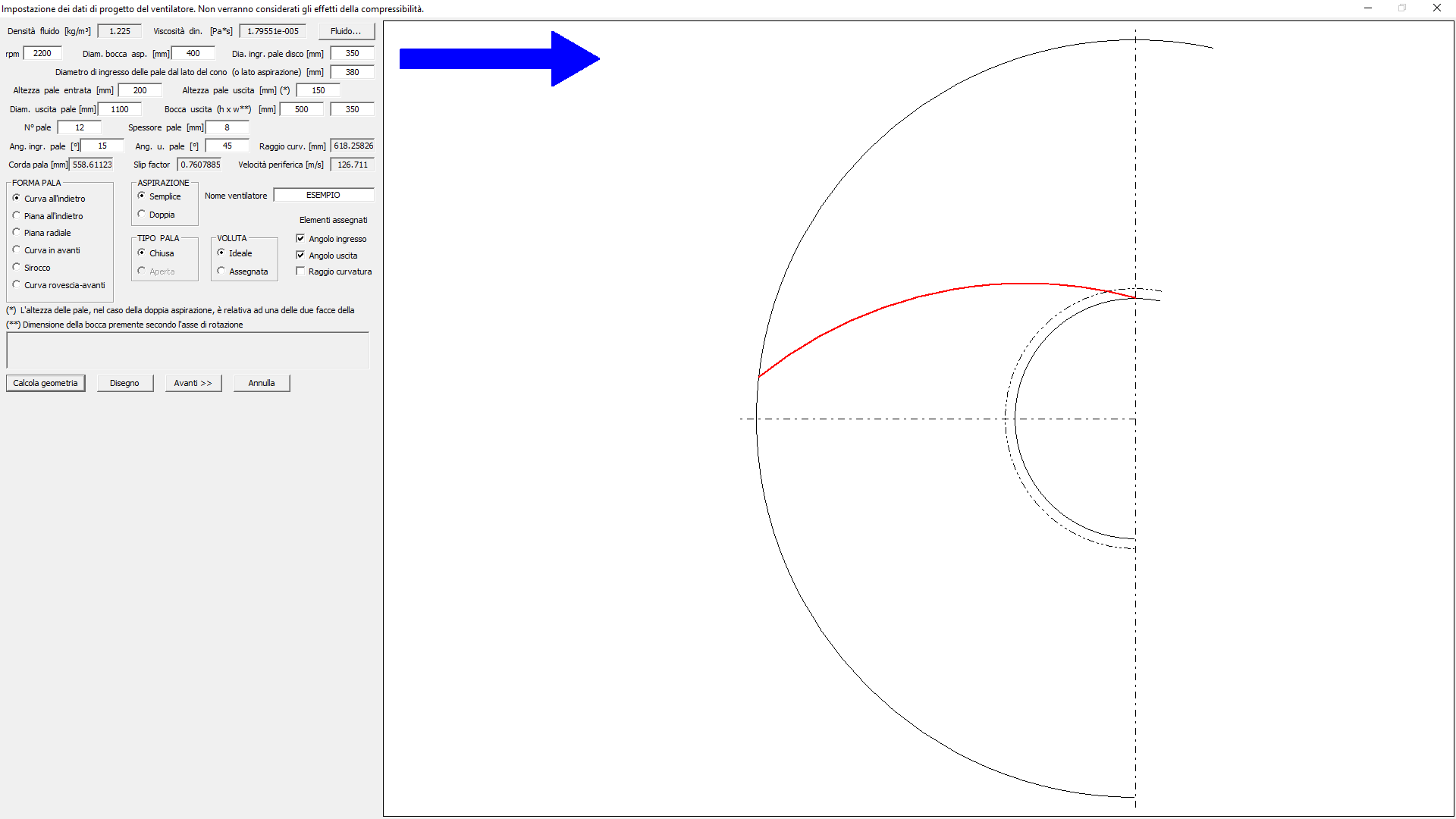

The program performs the air processing analysis for centrifugal fans on the basis
of the geometric design entered by the user.

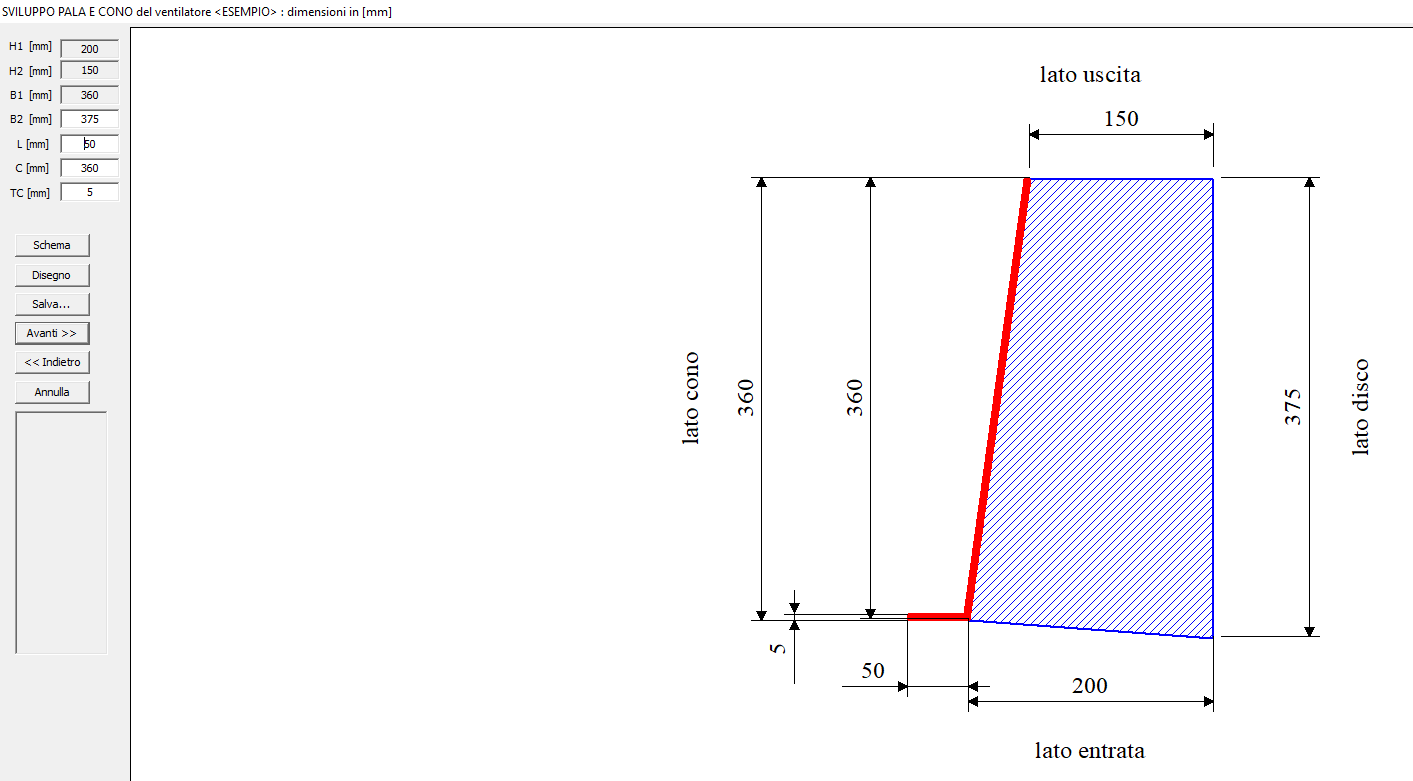

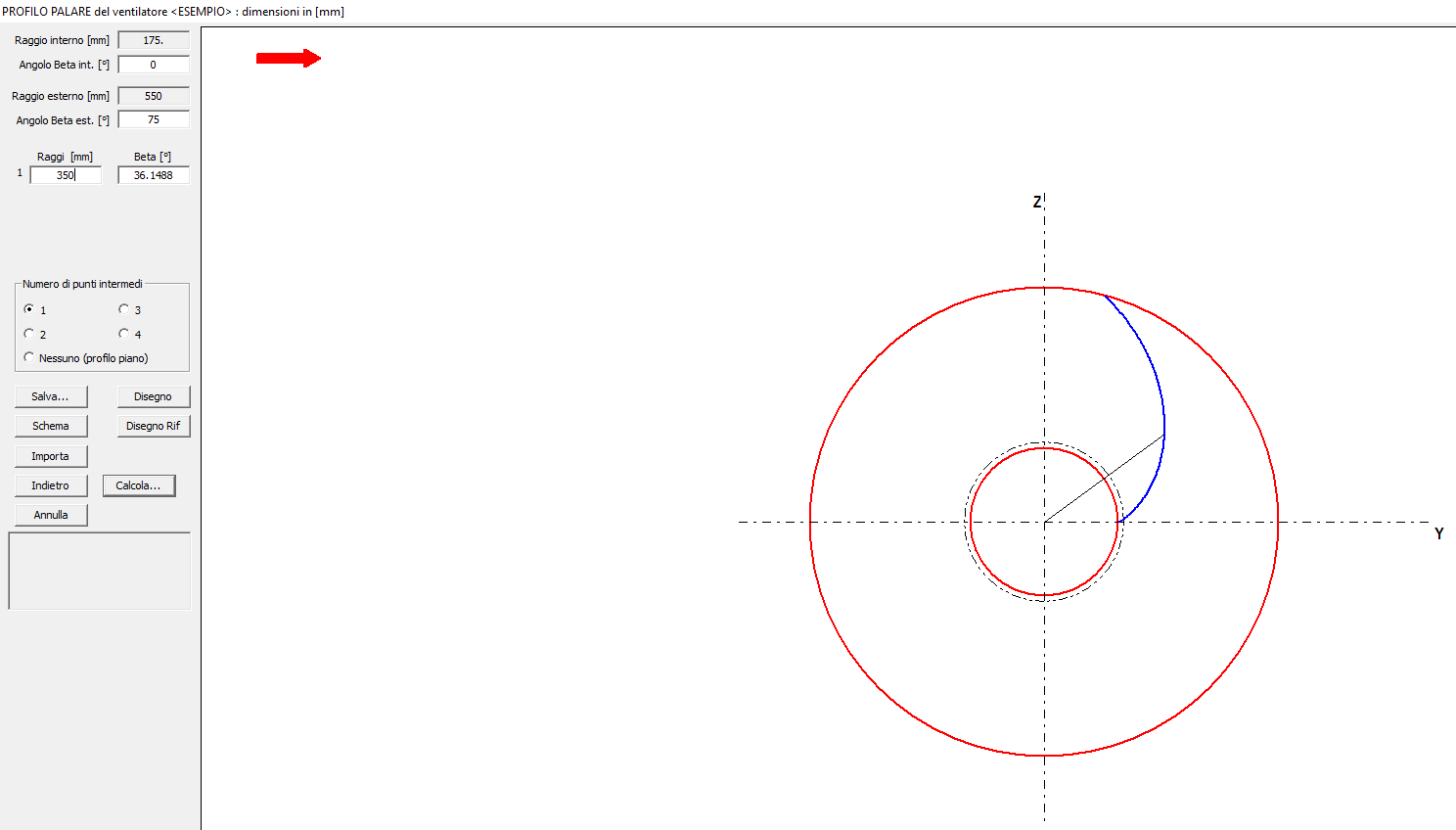

The following types of blades can be considered:

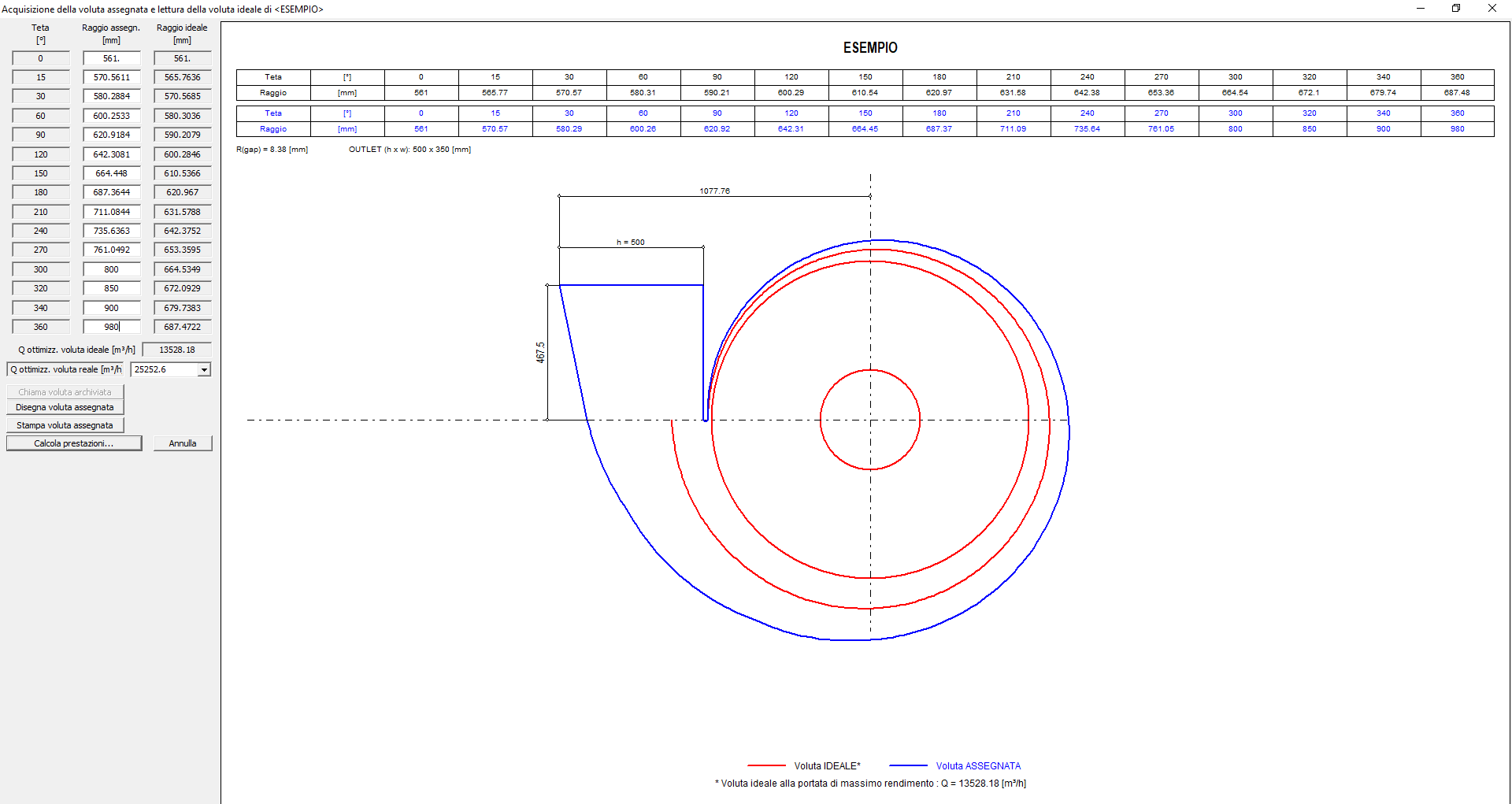

The spiral can be assigned by the user or calculated by the program.

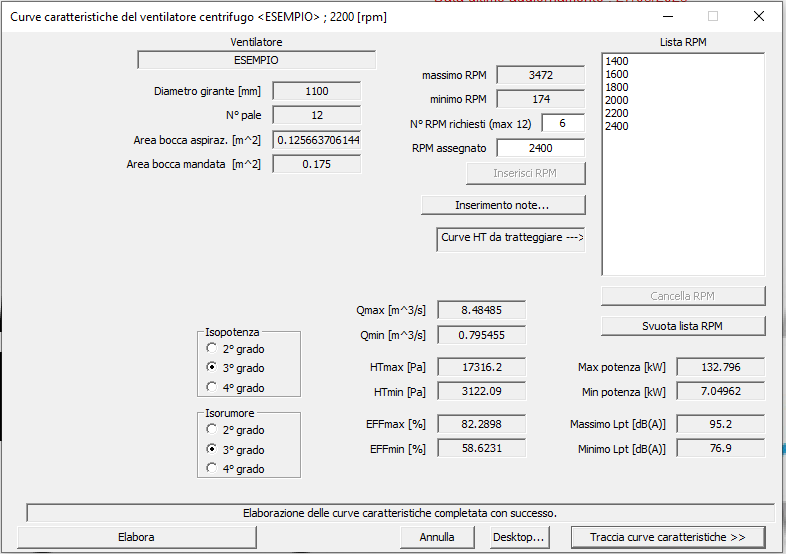

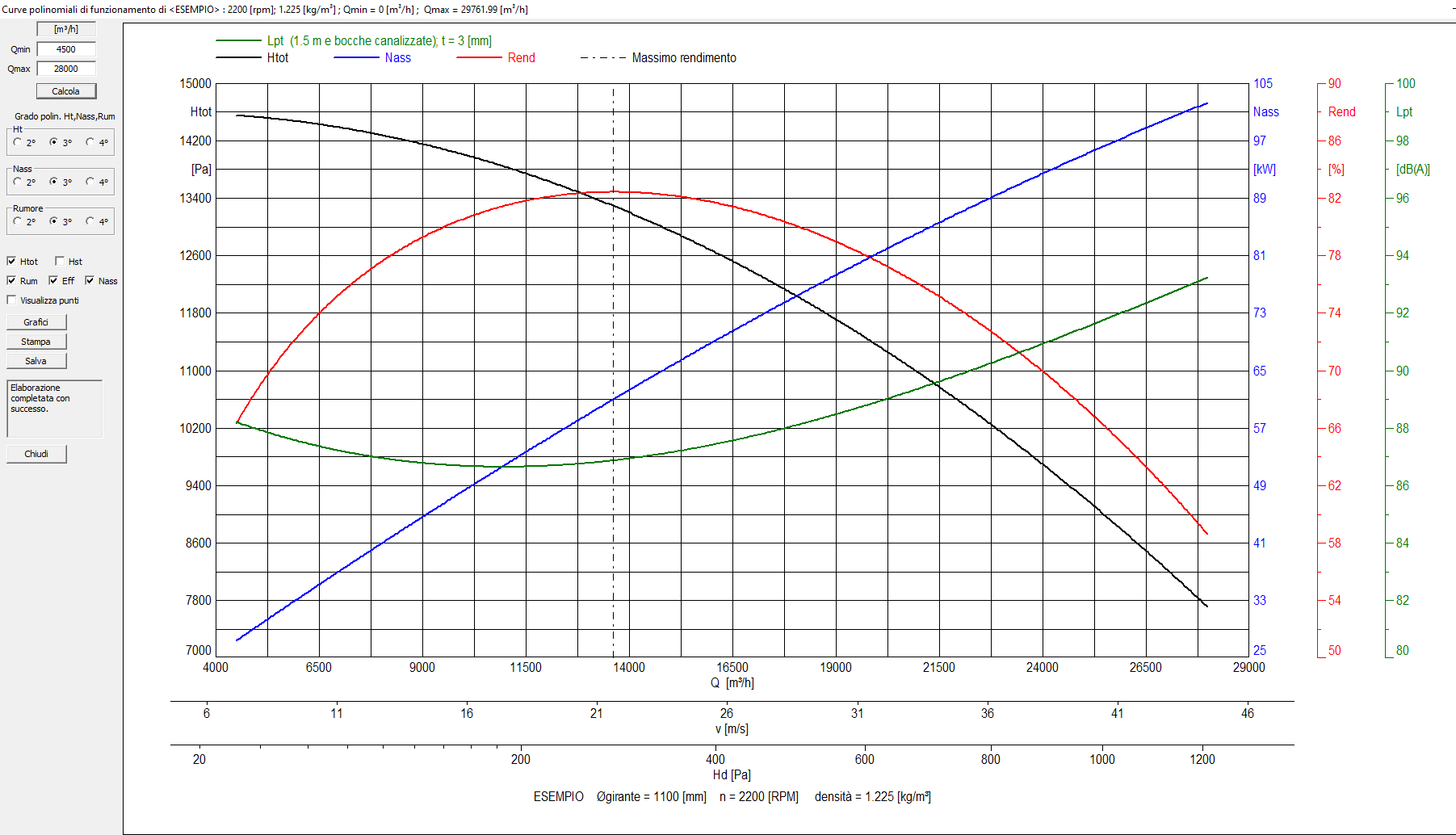

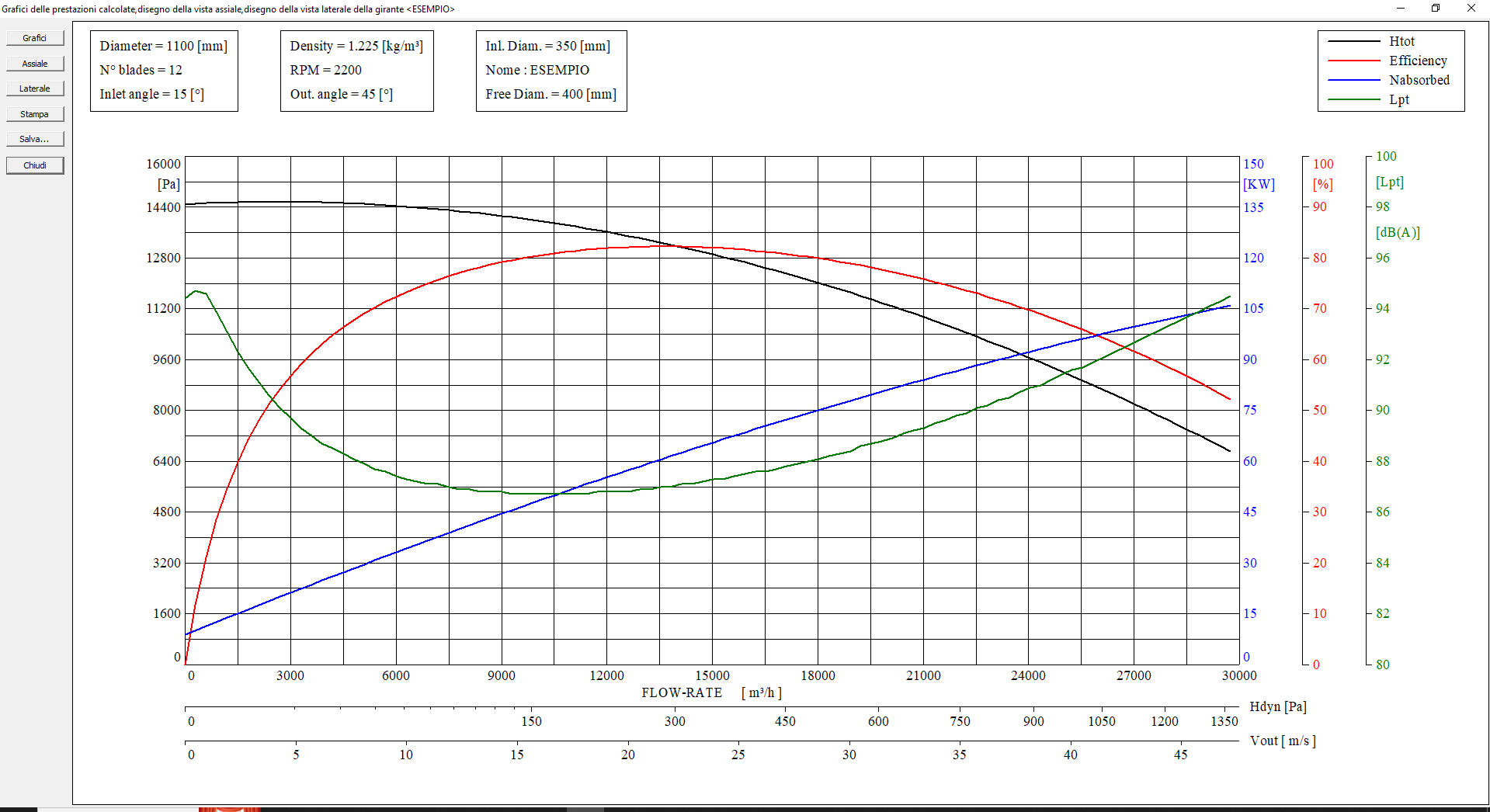

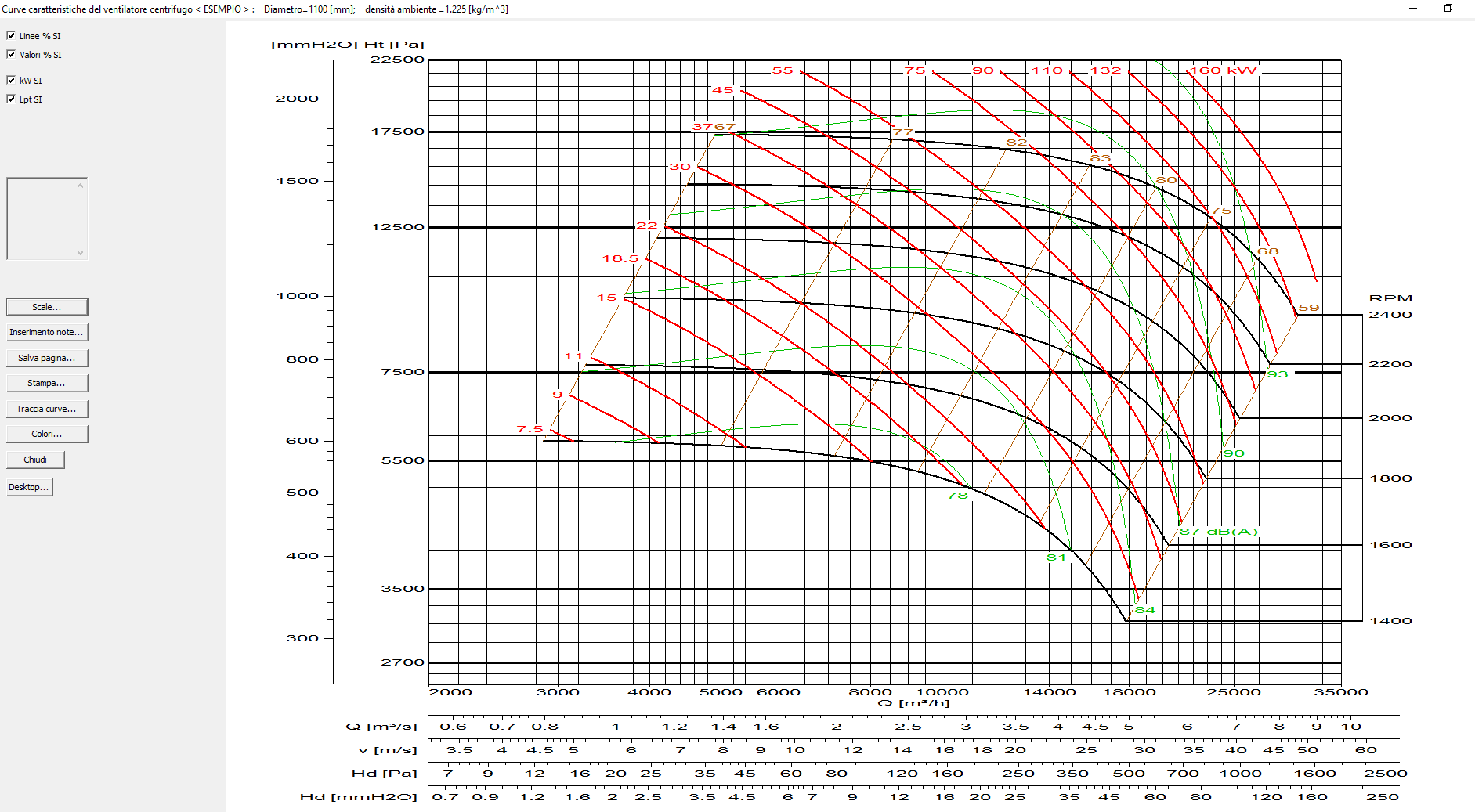

The calculation is equipped with graphs of fan performance (Htot-Q,

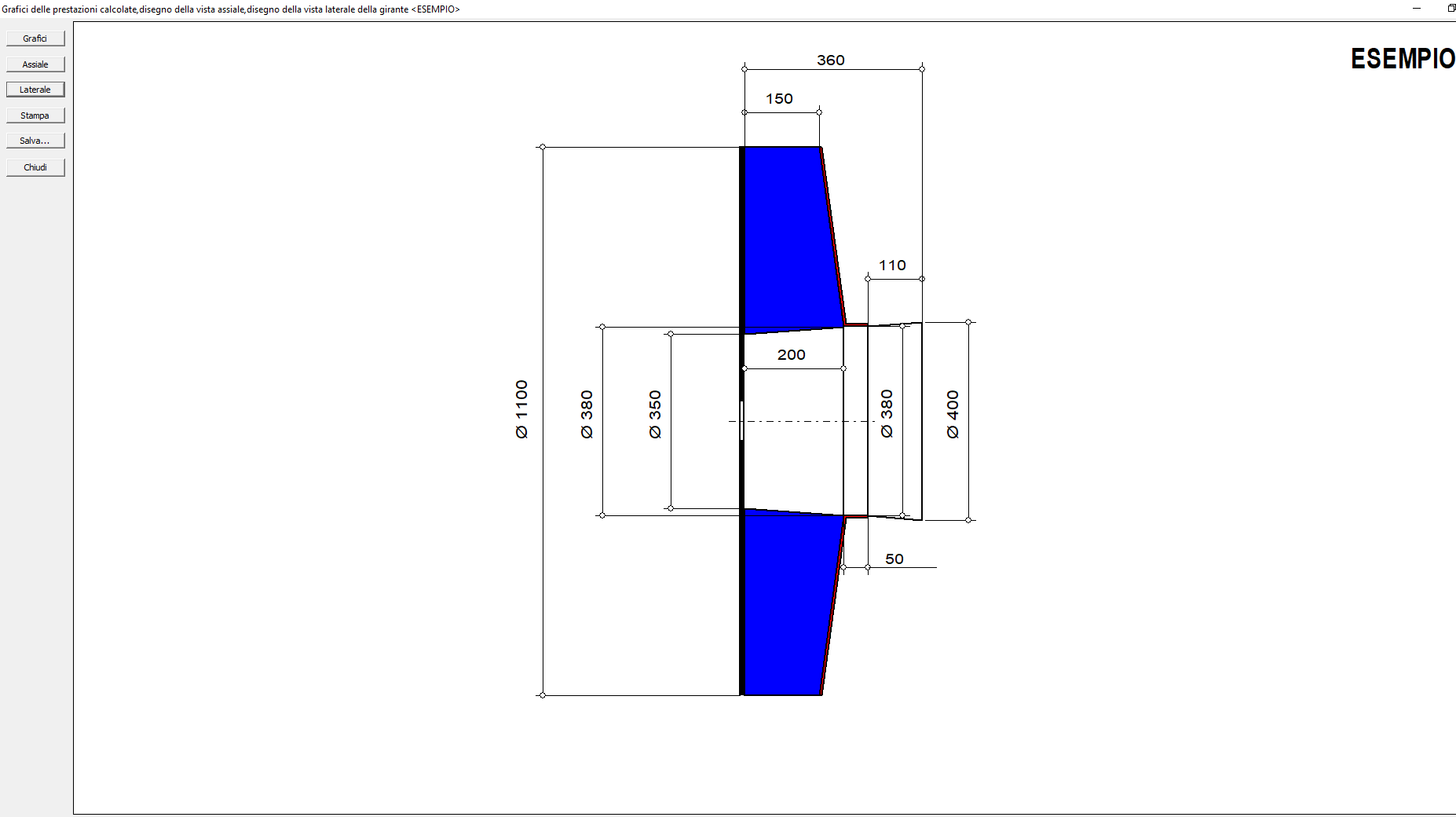

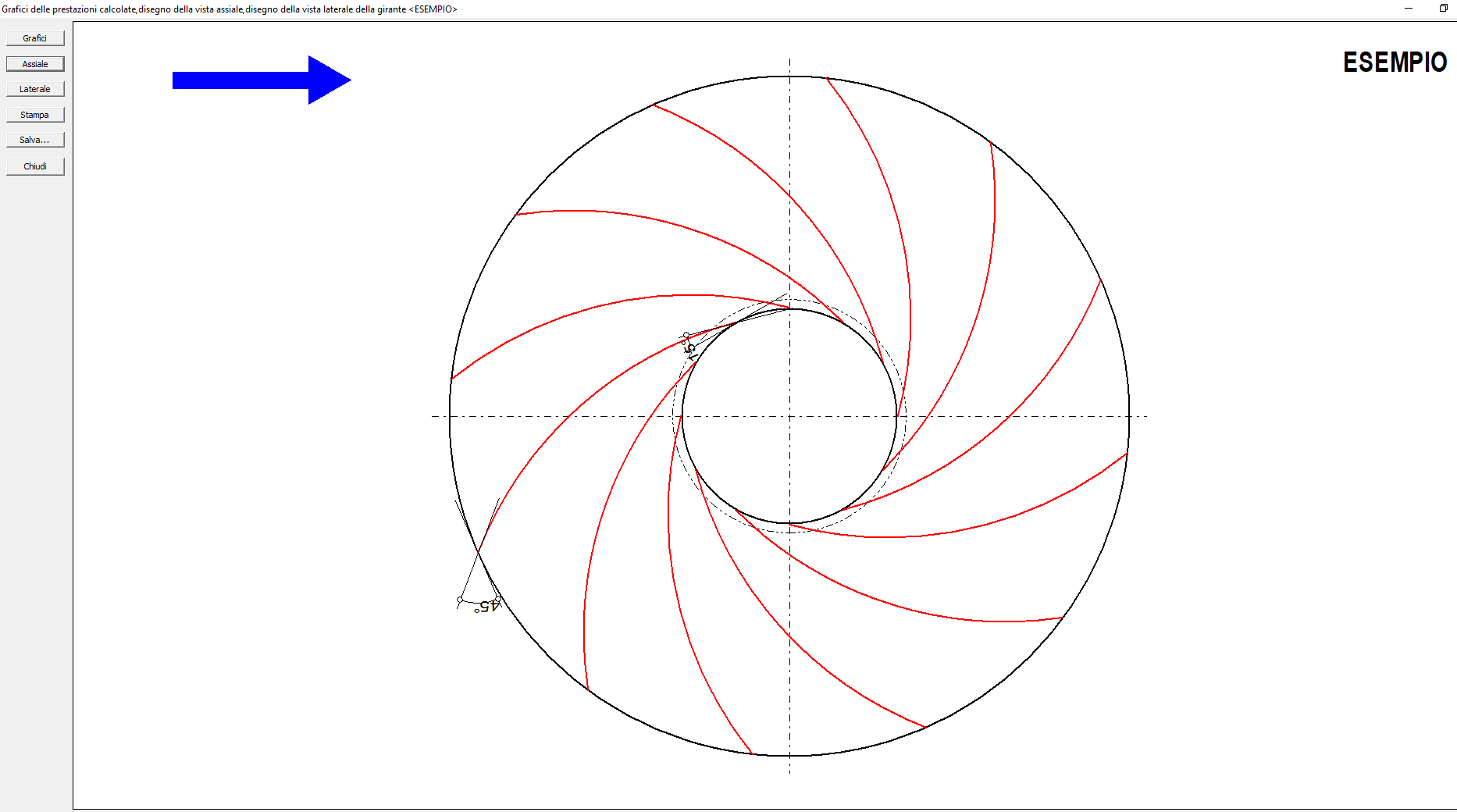

Nass-Q, h-Q , Lpa-Q where Htot = total pressure, Nab = absorbed power, Lpa= sound pressure level and Q = flow rate), a drawing of the rotor in axial and lateral views,
and a drawing of the spiral (ideal or user-assigned). These dimensional drawings can be saved in AUTOCAD DFX format.
INFORMATION
Caratt can be supplied in the following languages: Italian, Enlish or French.
The software can be customized on specific customer requests and is interfaced with the BLOW_MEC mechanical calculation software package.
