CURCAR

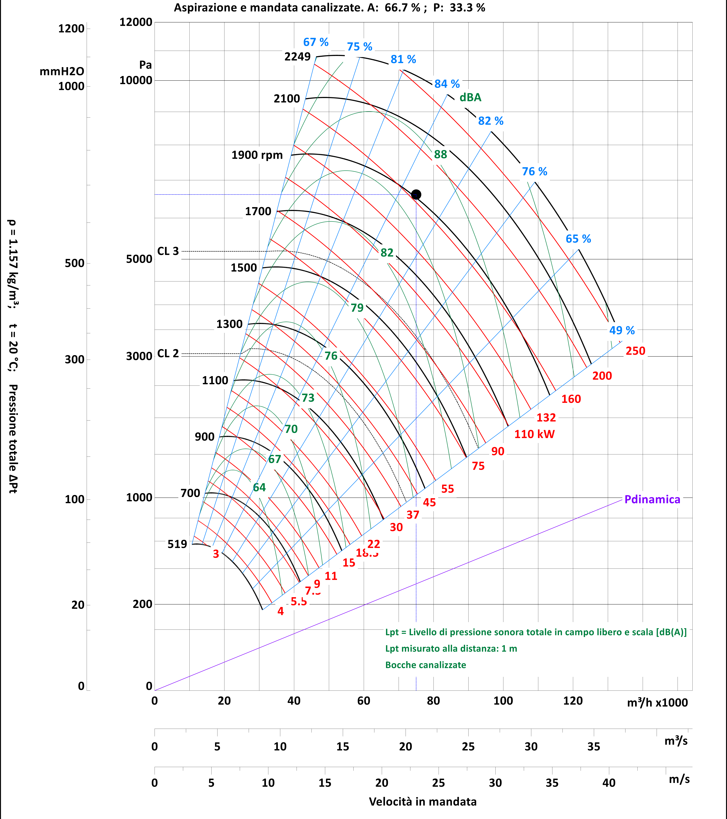

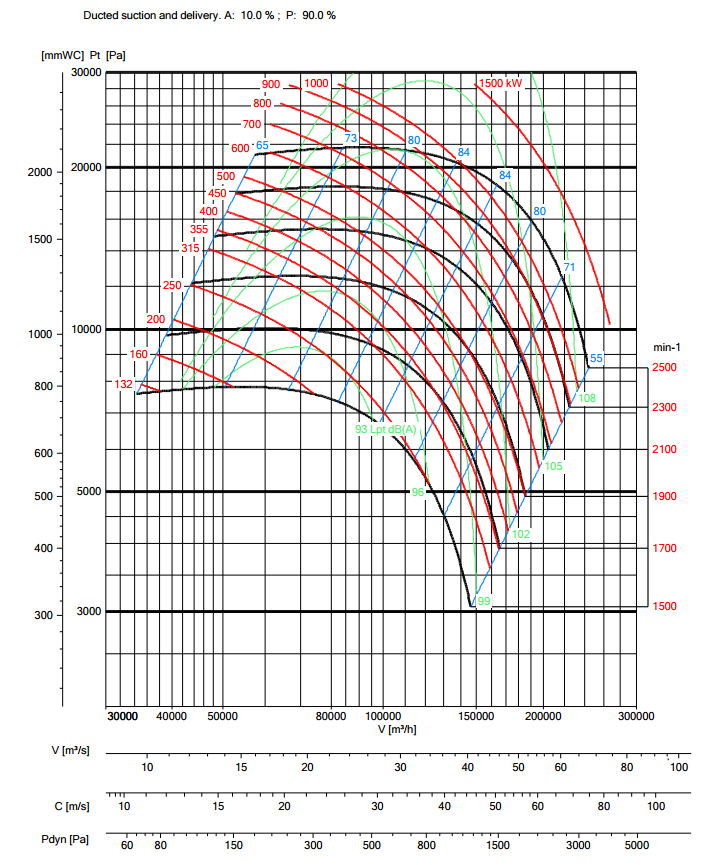

Tracing of characteristic curves for centrifugal fans

Curcar can be provided as an independent software package with a pre-built database, compiled by FLUID-MEC-SOFT, or an integrated software solution can be chosen, which has database management software included. In this case the customer creates the database.

  • FLUID DENSITY;

  • FLOW RATE UNITS OF MEASUREMENT;

  • PRESSURE UNITS OF MEASUREMENT;

  • THE RANGE OF THE NUMBER OF CURVE REVOLUTIONS (MINIMUM AND MAXIMUM REVOLUTION NUMBERS)

  • CURVE REPRESENTATION SCALES – LOGARITHMIC AND LINEAR/QUADRATIC

  • THE INCLUSION OR EXCLUSION OF EQUIPOTENTIAL LINES;

  • THE INCLUSION OR EXCLUSION OF BOUNDARY LINES FOR CONFIGURATION CATEGORIES;

  • THE INCLUSION OR EXCLUSION OF LINES OF EQUAL SOUND PRESSURE;

  • GLI SPESSORI DELLE VARIE LINEE DI RAPPRESENTAZIONE NEL CASO DI STAMPA DELLE CURVE;

  • THE THICKNESS OF THE VARIOUS REPRESENTATIVE LINES IN THE CASE OF PRINTING GRAPHS;

  • CHARACTERISTIC CURVES FOR NON-STANDARD FANS (LARGER OR SMALLER ROTOR DIAMETER)

Curcar can be provided as an independent software package with a pre-built database, compiled by FLUID-MEC-SOFT, or an integrated software solution can be chosen, which has database management software included. In this case the customer creates the database.

INFORMATION

BLOWER can be supplied in the following languages: Italian, Enlish, French, German and Spanish or in other Western or Eastern languages.

The software can be customized on specific customer requests.
